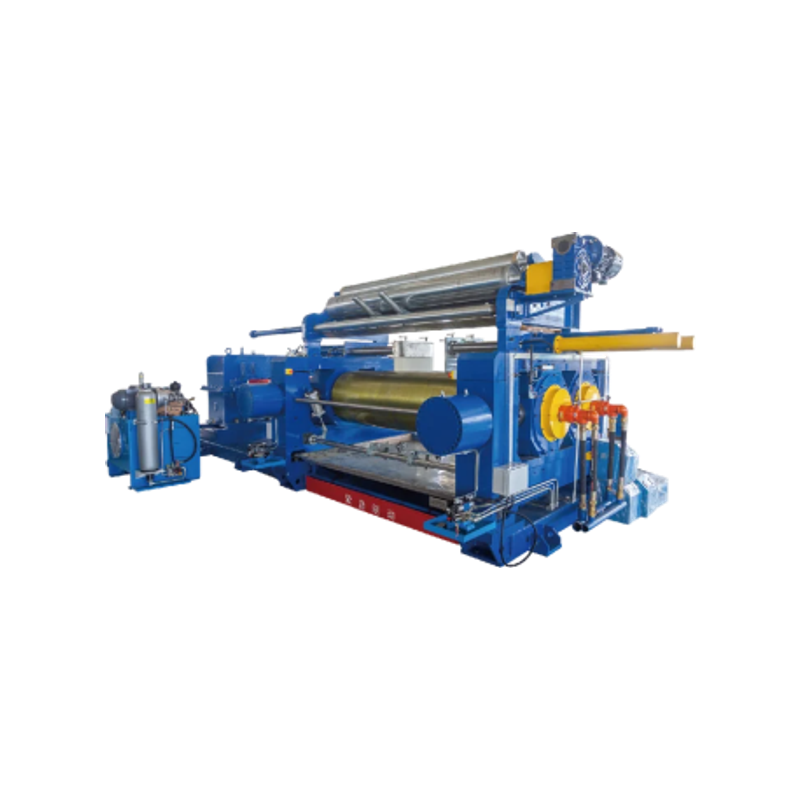

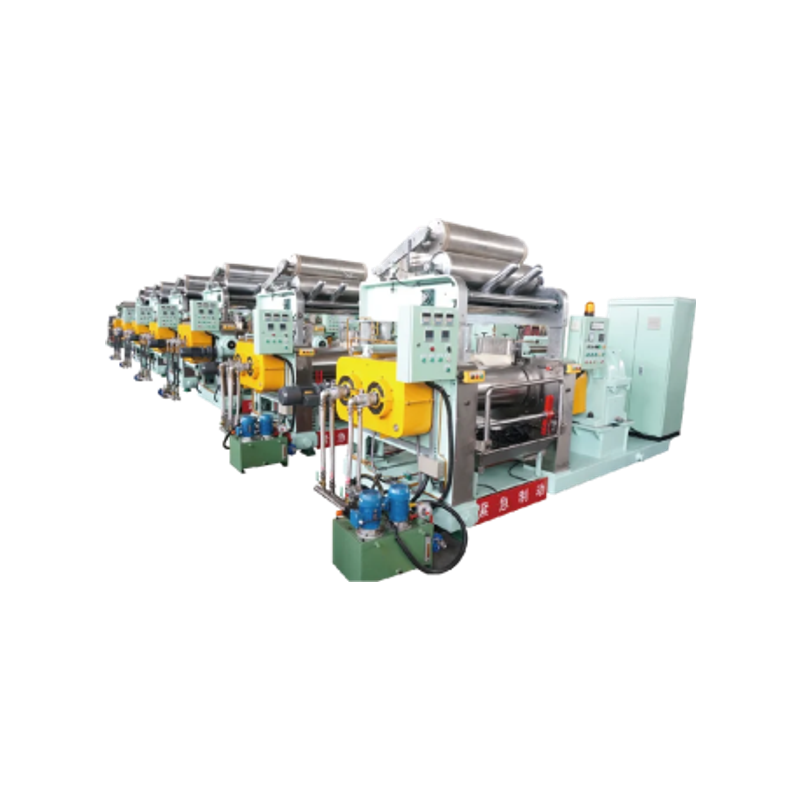

Equipment Application: For plasticating and mixing of rubber, plastic and other raw materials, hot mixing of rubber, rubber sheeting, crushing and refining of reclaimed rubber, etc.
| Item / Model | X(S)K-160 | X(S)K-250 | X(S)K-305 | X(S)K-360 | X(S)K-400 | X(S)K-450 |
|---|---|---|---|---|---|---|

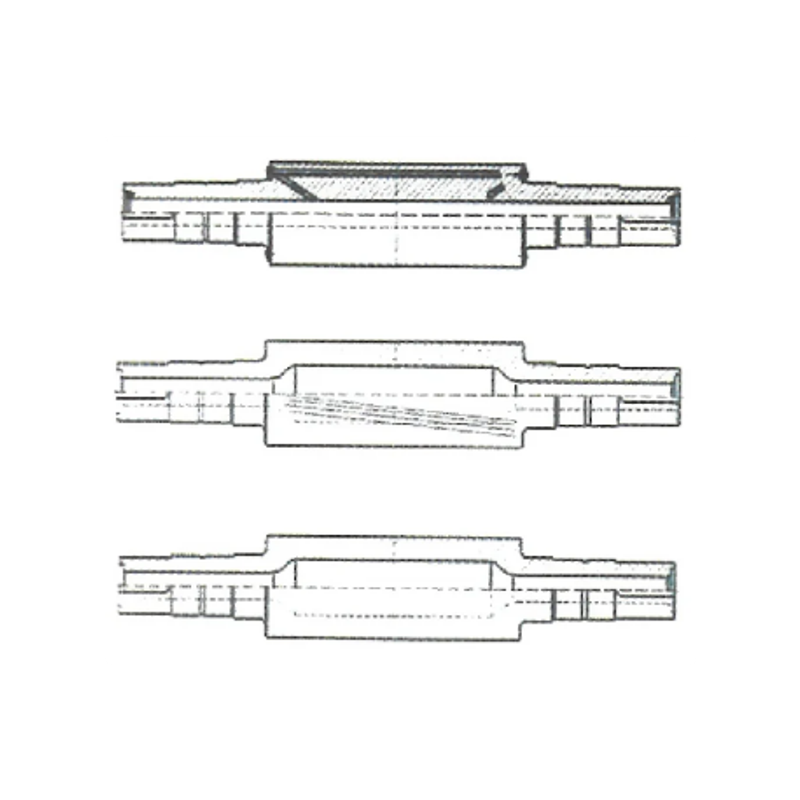

| Roller Specifications | Φ160×320 | Φ250×620 | Φ305×760 | Φ360×900 | Φ400×1000 | Φ450×1200 |
| Maximum Feeding Capacity | 4 | 15 | 20 | 30 | 40 | 55 |
| Front Roll Speed (m/min) | 10 | 13.2 | 16.3 | 16.22 | 18.78 | 21.1 |
| Speed Ratio | 1:1.21 | 1:1.17 | 1:1.15 | 1:1.22 | 1:1.17 | 1:1.17 |
| Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing |
| Motor Power (KW) | 7.5 | 18.5 | 30 | 37 | 45 | 55 |
| Overall Dimension (mm) | 1104x678x1258 | 3230x1166x1590 | 3901x1350x1680 | 4140x1574x1800 | 4578x1755x1805 | 5035x1808x1835 |
| Weight (kg) | 956 | 3150 | 4340 | 6892 | 9416 | 11400 |
| Item / Model | X(S)K-510 | X(S)K-550 | X(S)K-610 | X(S)K-660 | X(S)K-710 | X(S)K-760 | X(S)K-810 |
|---|---|---|---|---|---|---|---|
| Roller Specifications | Φ510×1500 | Φ550×1500 | Φ610×2000 | Φ660×2130 | Φ710×2200 | Φ760×2400 | Φ810×2540 |
| Maximum Feeding Capacity | 70 | 90 | 150 | 210 | 280 | 360 | 400 |
| Front Roll Speed (m/min) | 23.4 | 25.8 | 28.4 | 29.8 | 30 | 35.8 | 32 |
| Speed Ratio | 1:1.21 | 1:1.17 | 1:1.18 | 1:1.09 | 可调 | 可调 | 可调 |
| Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing |
| Motor Power (KW) | 90 | 110 | 160 | 250 | 160×2 | 200×2 | 250×2 |
| Overall Dimension (mm) | 5942x2080x1780 | 6058x2146x1800 | 7100x2438x1600 | 7240x3872x1840 | 7630x4790x1860 | 7540x4530x2025 | 8500x5000x2100 |
| Weight (kg) | 17320 | 18635 | 26197 | 41656 | 47042 | 60000 | 70000 |
