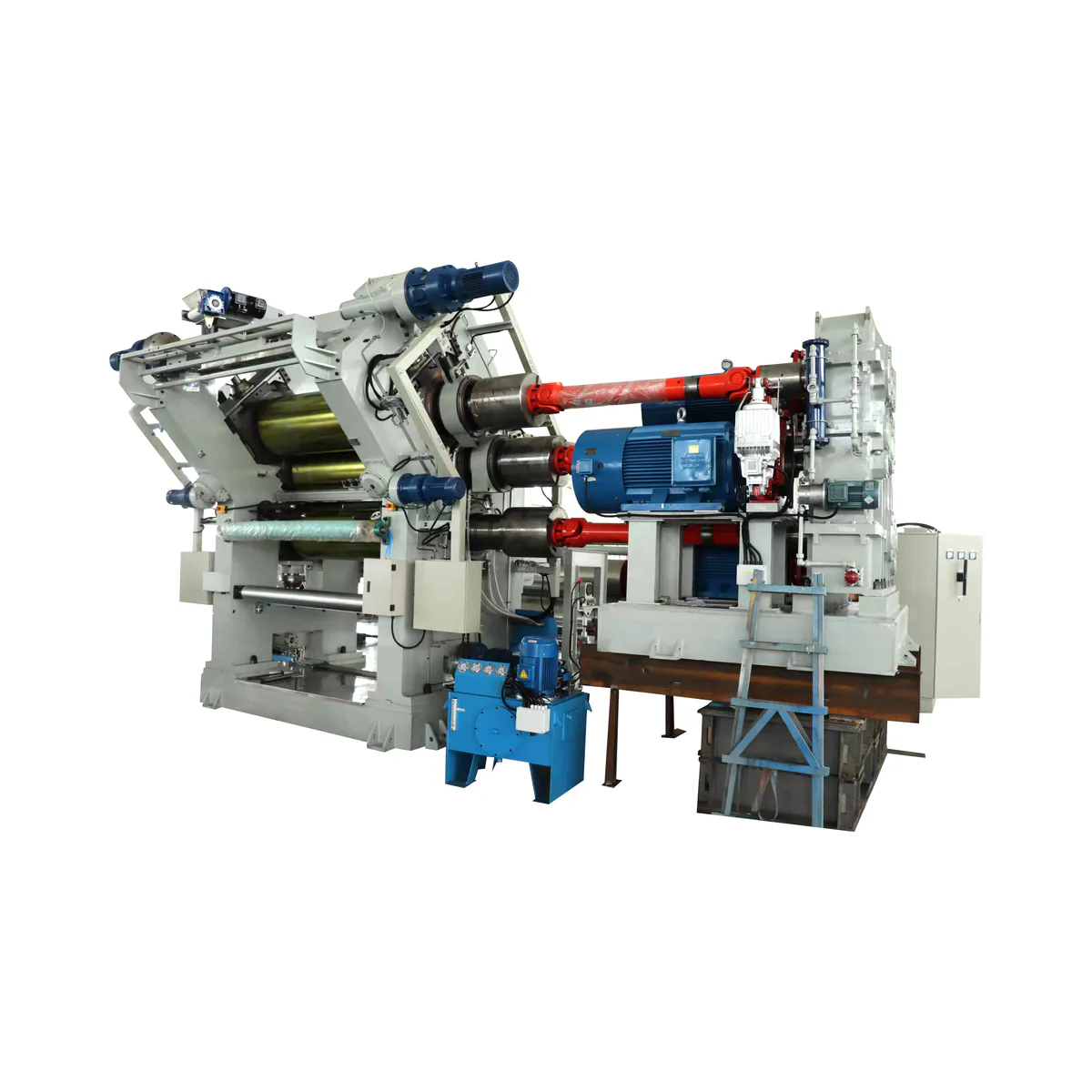

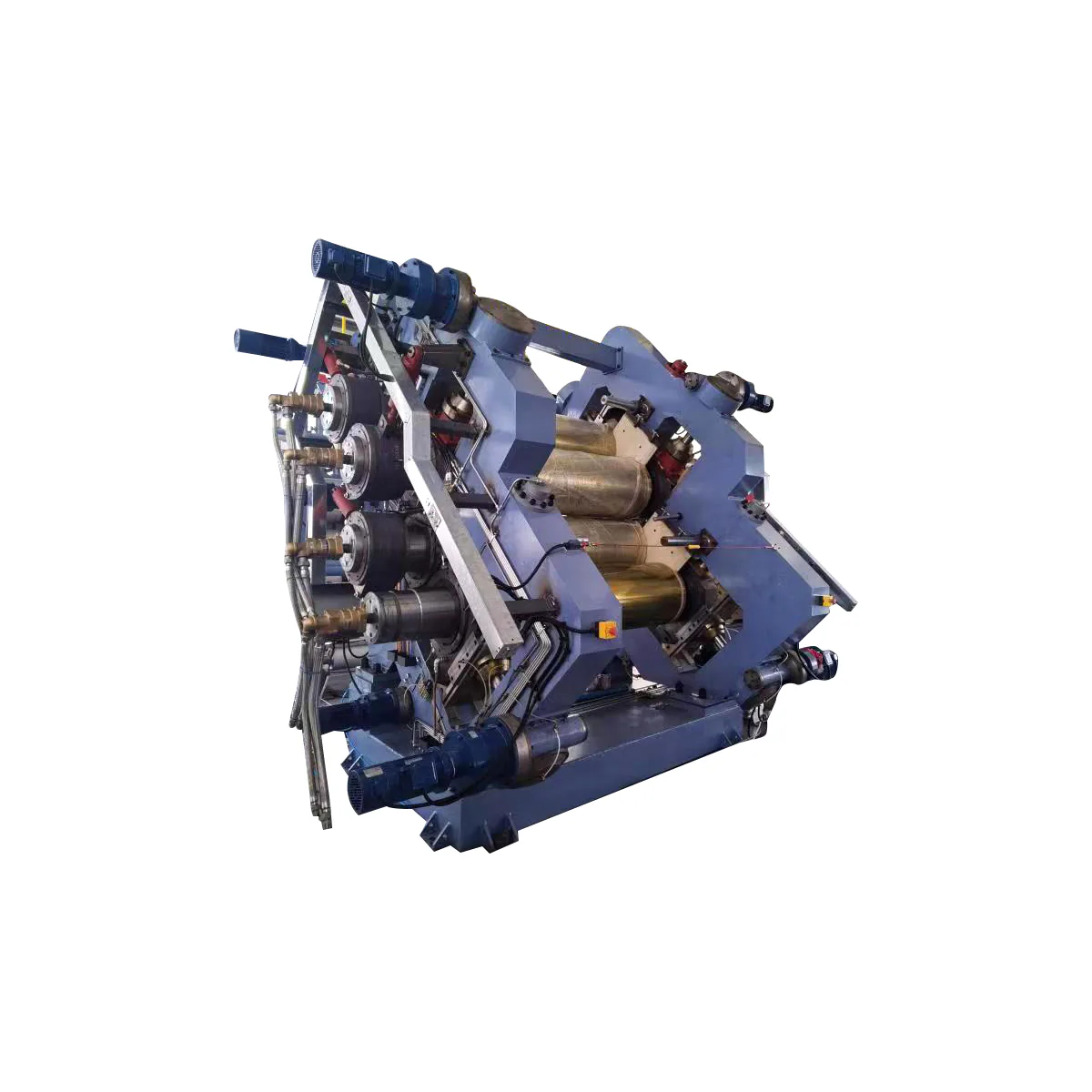

Calender

Product Details

Features

The roll is made of chilled cast iron.
The working surface of the roll features camber or pre-bending and an axis-crossing device to eliminate bending deformation during operation and ensure the dimensional accuracy of products.
A variety of speeds and speed ratios are available to meet users’ different process requirements.
Different types of electrical control systems are available for users to choose from.

Equipment Application

For rubber frictioning and laminating of rubber, cord fabric, canvas, and other textiles, as well as rubber and plastic sheeting processes.

Specification

2-roll to 4-roll; 250-710 mm; Type I, Type r, Type Γ, and Type S.

Technical Parameters

Item / Model	XY-2Φ250×630	XY-2Φ305×760	XY-2Φ450×1200	XY-2Φ610×1830	XY-3Φ250×630
Maximum Product Width (mm)	500	600	400	1600	500
Product Thickness (mm)	0.2-5	0.2-5	0.2-5	0.2-5	0.2-5
Main Motor Power (KW)	7.5	22-37	30-55	110-160	7.5-15
Overall Dimension (mm)	2823x1100x1662	4000x1580x1930	4650x1755x2167	7500x2800x3100	3250x1176x1915
Weight (kg)	4000	5000	13500	34000	5000

Item / Model	XY-3Φ305×760	XY-3Φ360×1120	XY-3Φ400×1200	XY-3Φ450×1400
Maximum Product Width (mm)	600	900	1000	1200
Product Thickness (mm)	0.2-5	0.2-5	0.2-5	0.2-5
Main Motor Power (KW)	22-55	30-55	37-55	45-75
Overall Dimension (mm)	3000x2760x2062	4380x1545x1970	5400x2100x2400	5500x2500x2600
Weight (kg)	7500	8200	13500	16500

Item / Model	XY-3Φ550×1500	XY-3Φ610×1730	XY-4Φ360×1120	XY-4Φ400×1200
Maximum Product Width (mm)	1300	1500	900	1000
Product Thickness (mm)	0.2-7	0.2-5	0.2-5	0.2-5
Main Motor Power (KW)	160-200	200-250	45-75	110-132
Overall Dimension (mm)	7560x3130x3450	7000x3800x3750	5100x2025x2440	4972x1700x2650
Weight (kg)	38000	48000	13500	15000

Item / Model	XY-4Φ450×1400	XY-4Φ550×1500	XY-4Φ610×1730	XY-4Φ660×1800	XY-4Φ710×2000
Maximum Product Width (mm)	1200	1300	1450	1500	1700
Product Thickness (mm)	0.2-5	0.2-2	0.2-5	0.2-5	0.2-5
Main Motor Power (KW)	110-160	110-185	200-315	250-355	250-355
Overall Dimension (mm)	6000x2300x2650	6500x3500x3200	6710x2800x4050	7200x3500x4200	7500x4300x4400
Weight (kg)	18000	44000	48000	100000	110000
